AutoDrain 950
| AutoDrain 950 | 230 V | 115 V | |
|---|---|---|---|
| Power supply (±10%) | 230 V (50/60 Hz) | 115 V (50/60 Hz) | |
| Power consumption (during drainage) | 10 VA | ||
| Operating pressure | 0,2-16 bar | ||
| Operating temperature | +1/+60 °C | ||
| Protection class |
IP65 (with connector and correctly assembled gasket) |
||
| Electrical connection | EN 175301-803 Forma A (ex DIN 43650) (Supplied) | ||
| Nominal flow rate (m³/min) (1) | 60 | ||
| Nominal discharge (lt/h) | 40 | ||
| Maximum discharge (lt/h) | 70 | ||
| Maximum compressor capacity (m³/min) | 60 | ||
| Maximum dryer capacity (m³/min) | 120 | ||
| Maximum filter capacity (m³/min) | 600 | ||
| Inlet connection | 1 x R3/8″M | ||
| Outlet connection (with flow limiter) | ø10 | ||
| Weight (Kg) | 0,215 | ||
| Certificates | n/a | ||
| Code | 35-843 | 35-842 | |
(1) = Data refer to 1000 mbar(a), 20° C and 60% relative humidity. Operating pressure 7 bar and outlet temperature of the aftercooler 35° C.

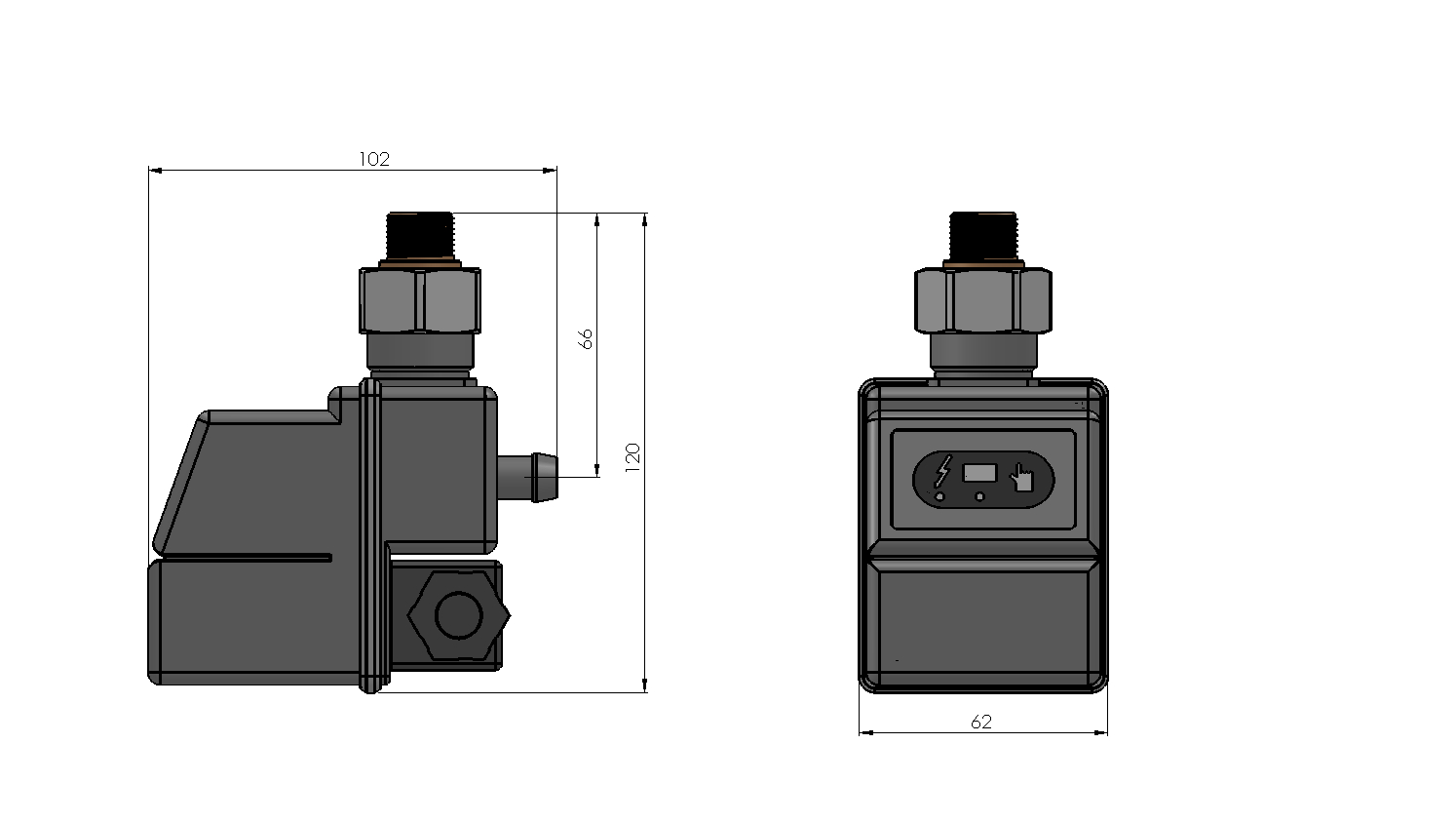

DIMENSIONAL VIEW
Click on image to enlarge
SERVICE KIT – ACCESSORIES
-

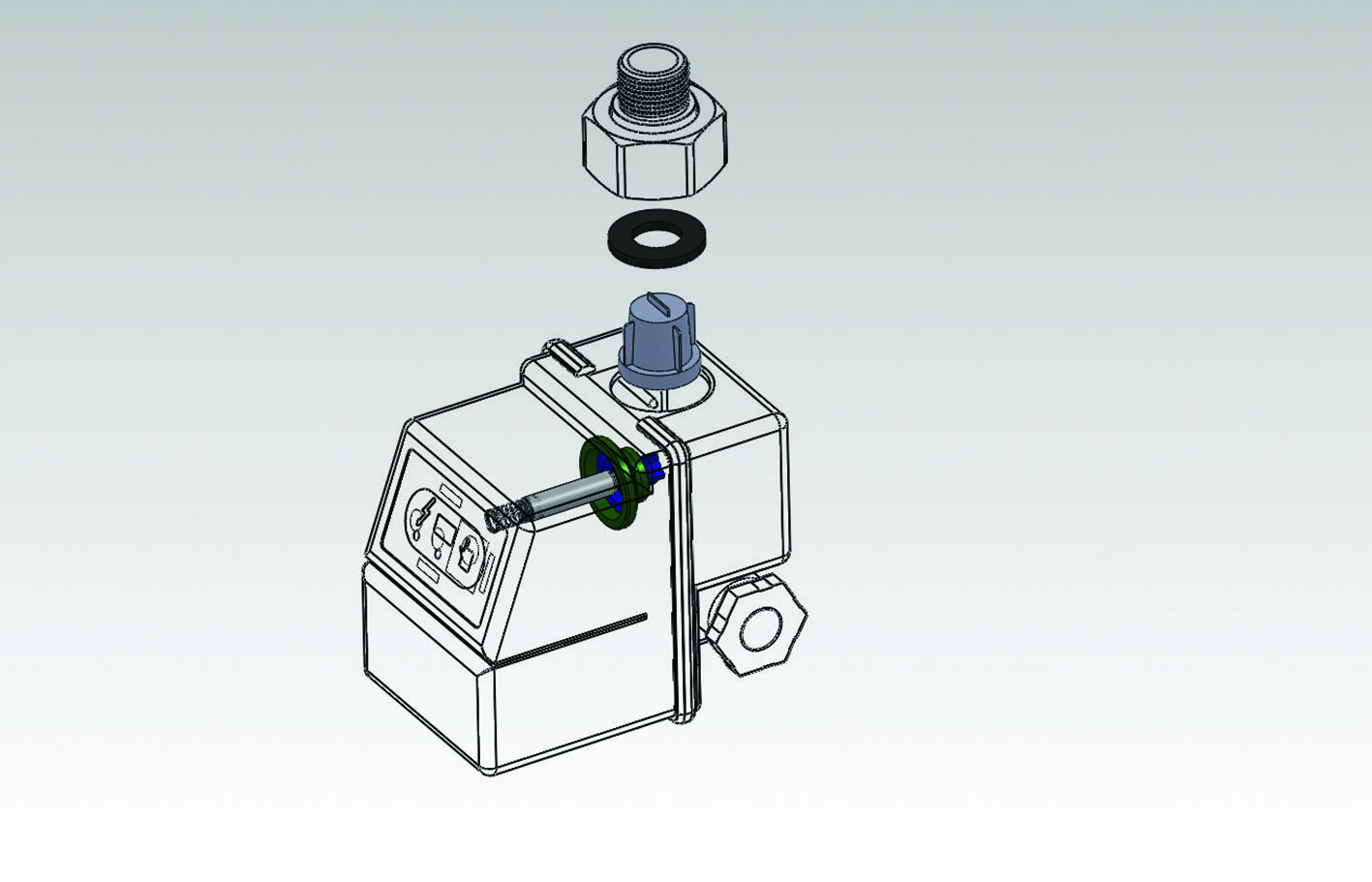

- C661 – Maintenance kit
-

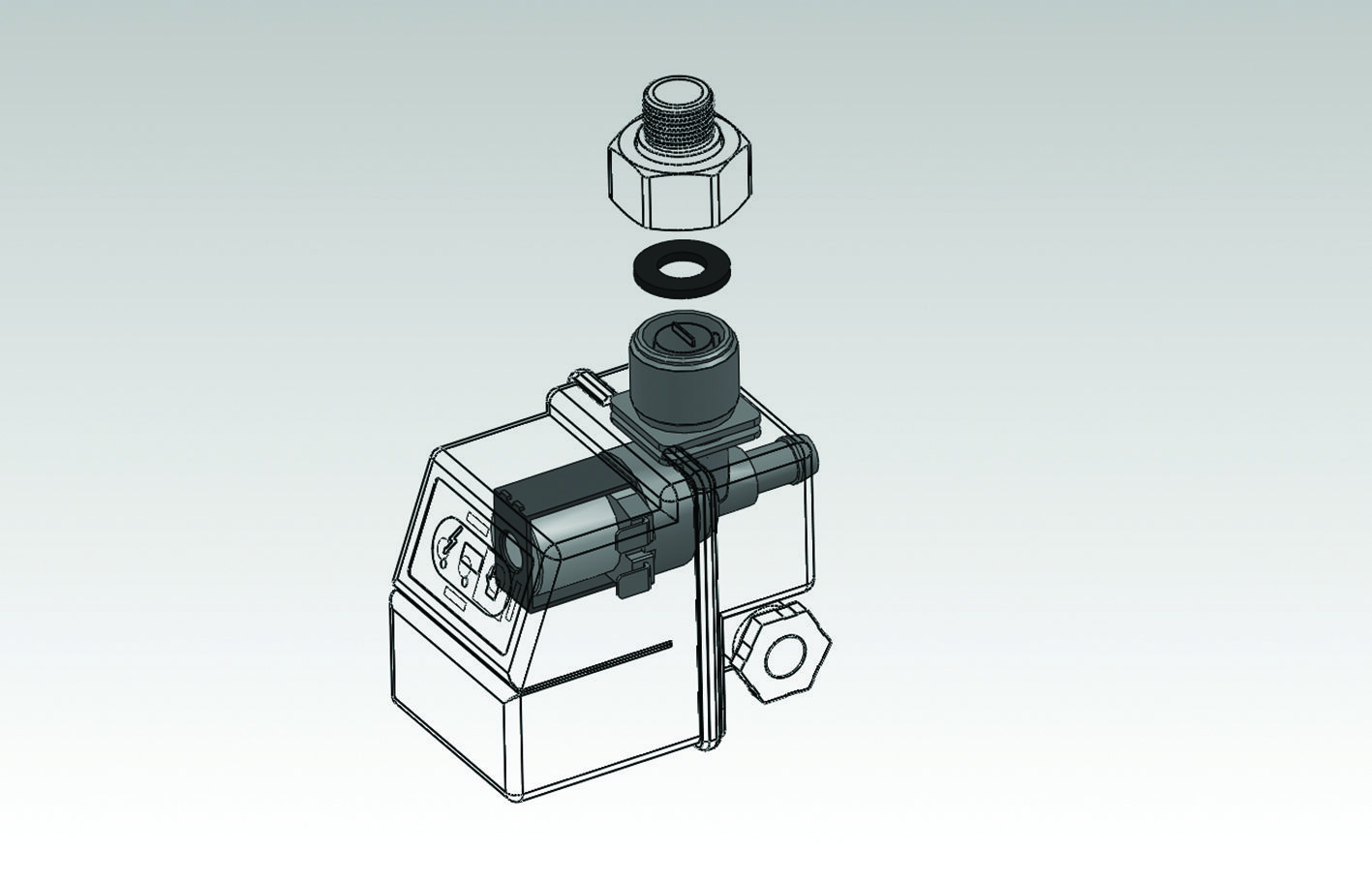

- C664 – Complete valve body 230V
-
- C665 – Complete valve body 115V
