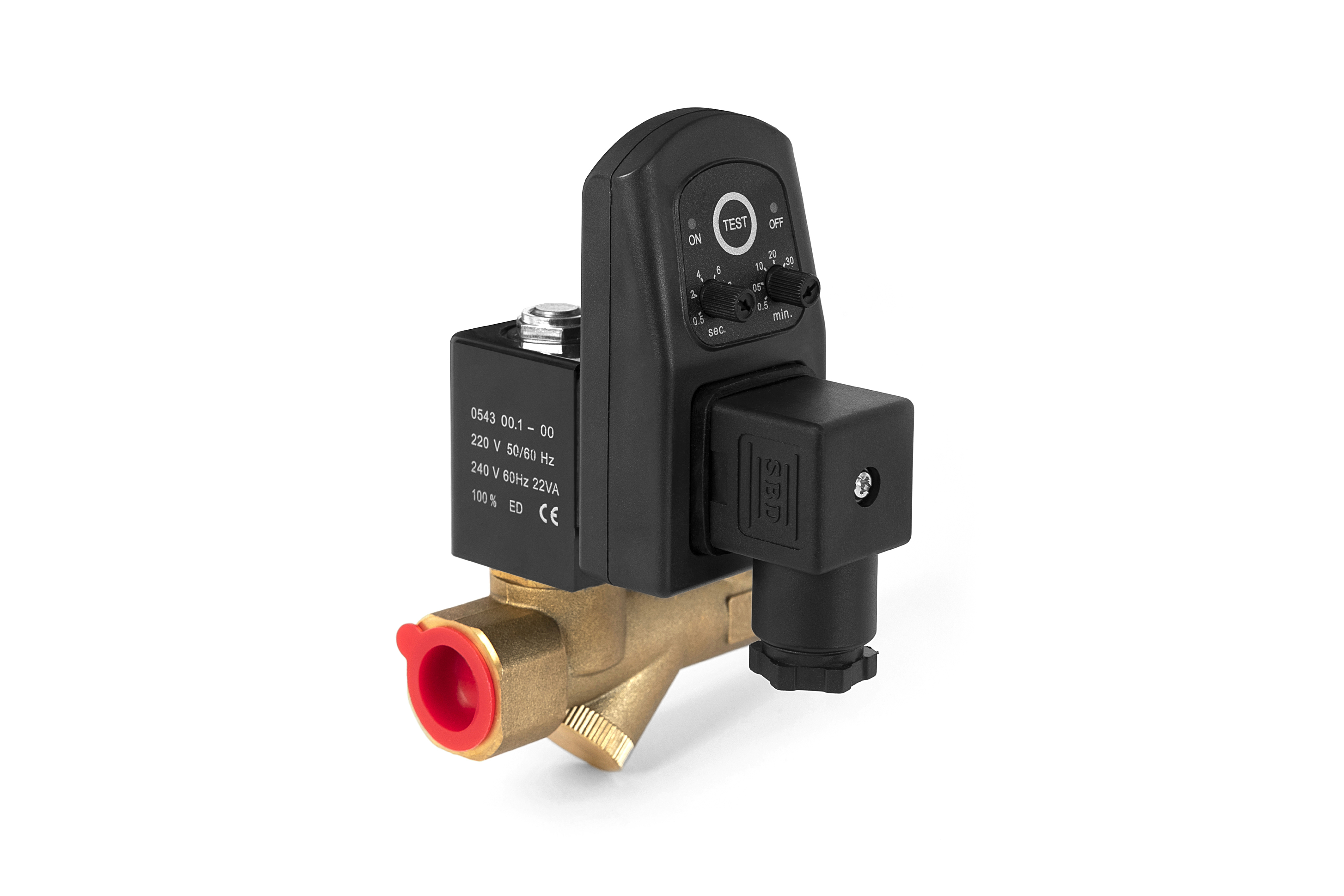

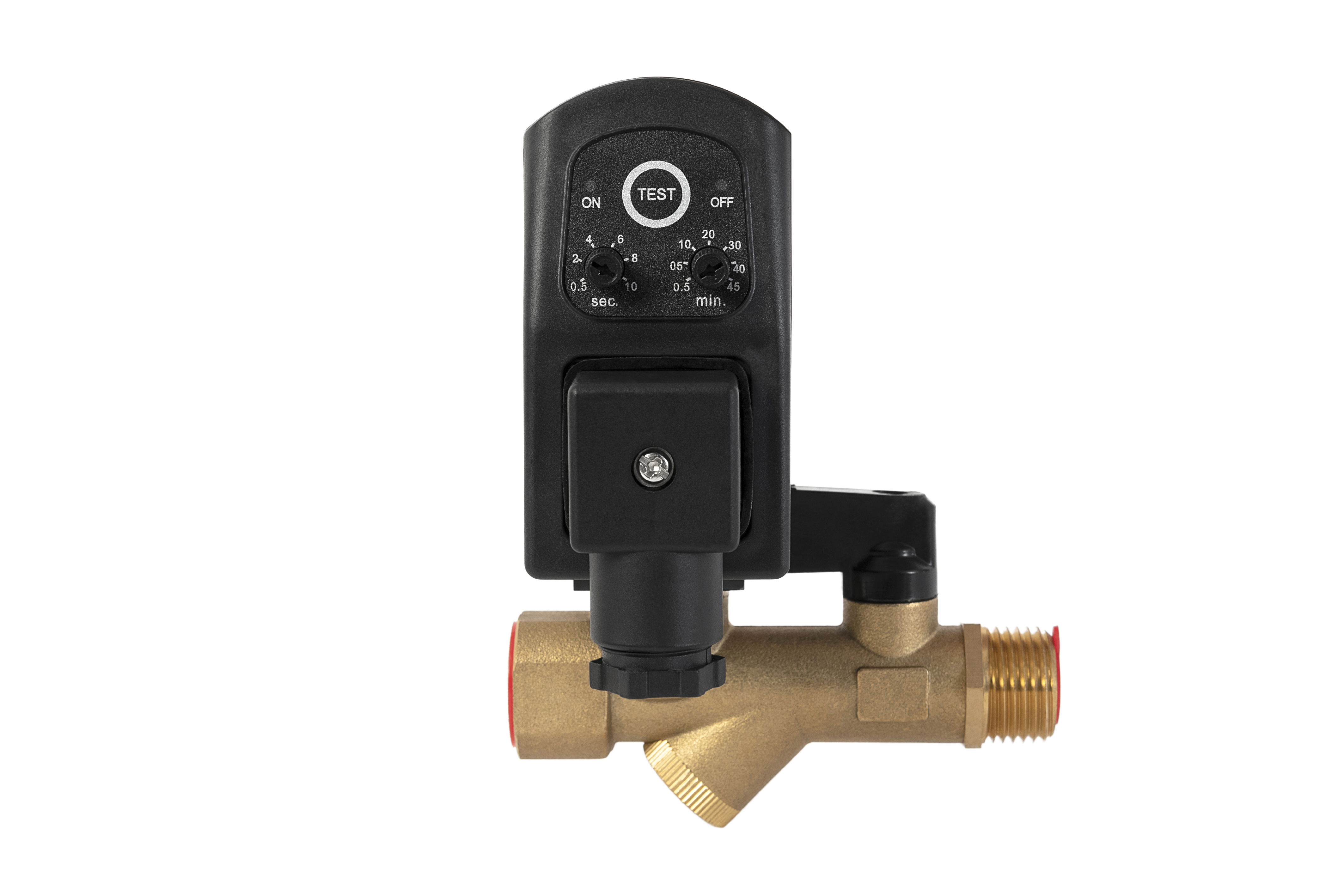

CTD – Compact Timer Drain 16 bar
Timer-controlled Compact Condensate Drain
- Compact design
- Simple to install and fully automatic
- Large vent for a reliable discharge
- Configurated with an integrated ball-valve and strainer with double inlet thread (½”M and ¼”F), easy to clean
- Two potentiometers to set T-on and T-off to suit any size of compressed air devices
- Two LEDs allow to visualize the operating status
- Test button to drain the condensate manually and check the valve function
- NPT connection available for version 115V Ac
- Supplied with connector plug type A (DIN43650A ISO 440/6952)
- Supplied with hose holder
- NC 2/2 way direct acting valve
- CE approved and UL certified (e488201)
- Supplied with hose connector
| Timer Drain | CTD 230V | CTD 115V | ||
|---|---|---|---|---|
| SCB p/n | 75-971 | 75-972 | ||
| Working pressure | 0,2 – 16 bar | |||
| Valve vent (ø) | 3,5 mm | |||
| Kv (at 1 bar) | 4,3 l/min | |||
| Power | 22VA | |||
| IN/OUT connection | Gas ½” | NPT ½” | ||
| Valtage | 230V 50/60 Hz | 115V 50/60 Hz | ||
| Valve’s body material: | Brass | |||
| Gasket | NBR, Viton | |||
| T-on | Draining time 0,5 to 10 seconds | |||
| T-off | Interval 0,5 to 45 minutes | |||
| Working temperature | +1°C / +60 °C | |||

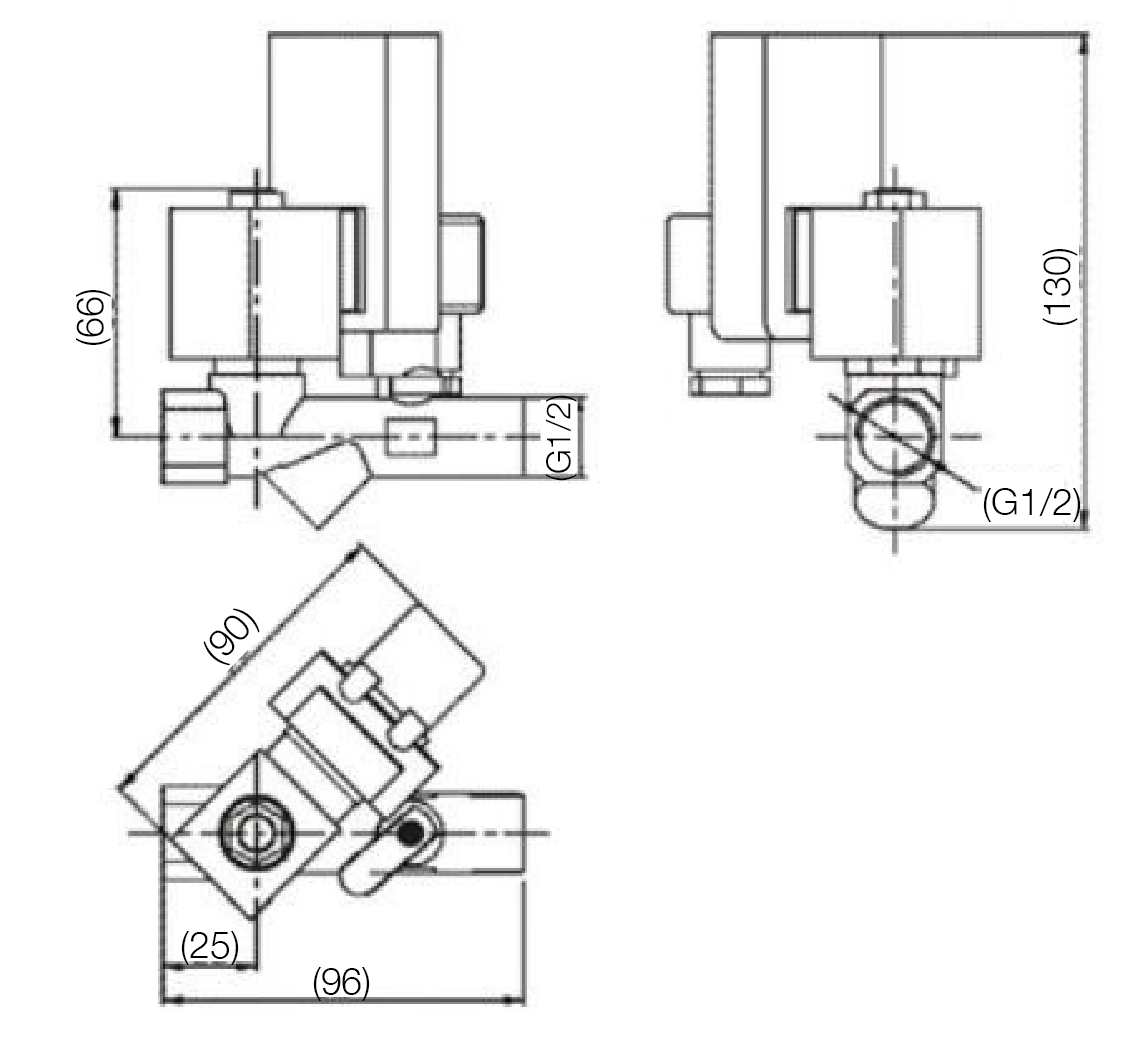

DIMENSIONAL VIEW
