LD101L

LD101L 230 V 115 V 115 V UL 24 V 24 Vdc
Power supply (±10%) 230 V (50/60 Hz) 115 V (50/60 Hz) 115 V (50/60 Hz) 24 V (50/60 Hz) 24 Vdc
Power (during drainage) 10 VA
Alarm contact Contact NC/NO: 240V Ac max – 1A/30V Dc max – 1A
Working pressure 0,2-16 bar
Working temperature +1/+60 °C
Protection class

IP65 (With connector and correctly assembled gasket)

Electric connection

EN 175301-803 Type B (ex DIN 43650) (Supplied)

Alarm connection M12 Code A 4 Poles (Not supplied)
Nominal flow (m³/min) (1) 7,5
Nominal drain (lt/h) 5
Maximum drain (lt/h) 15
Maximum compressor capacity (m³/min) 7,5
Maximum dryer capacity (m³/min) 15
Maximum filter capacity (m³/min) 75

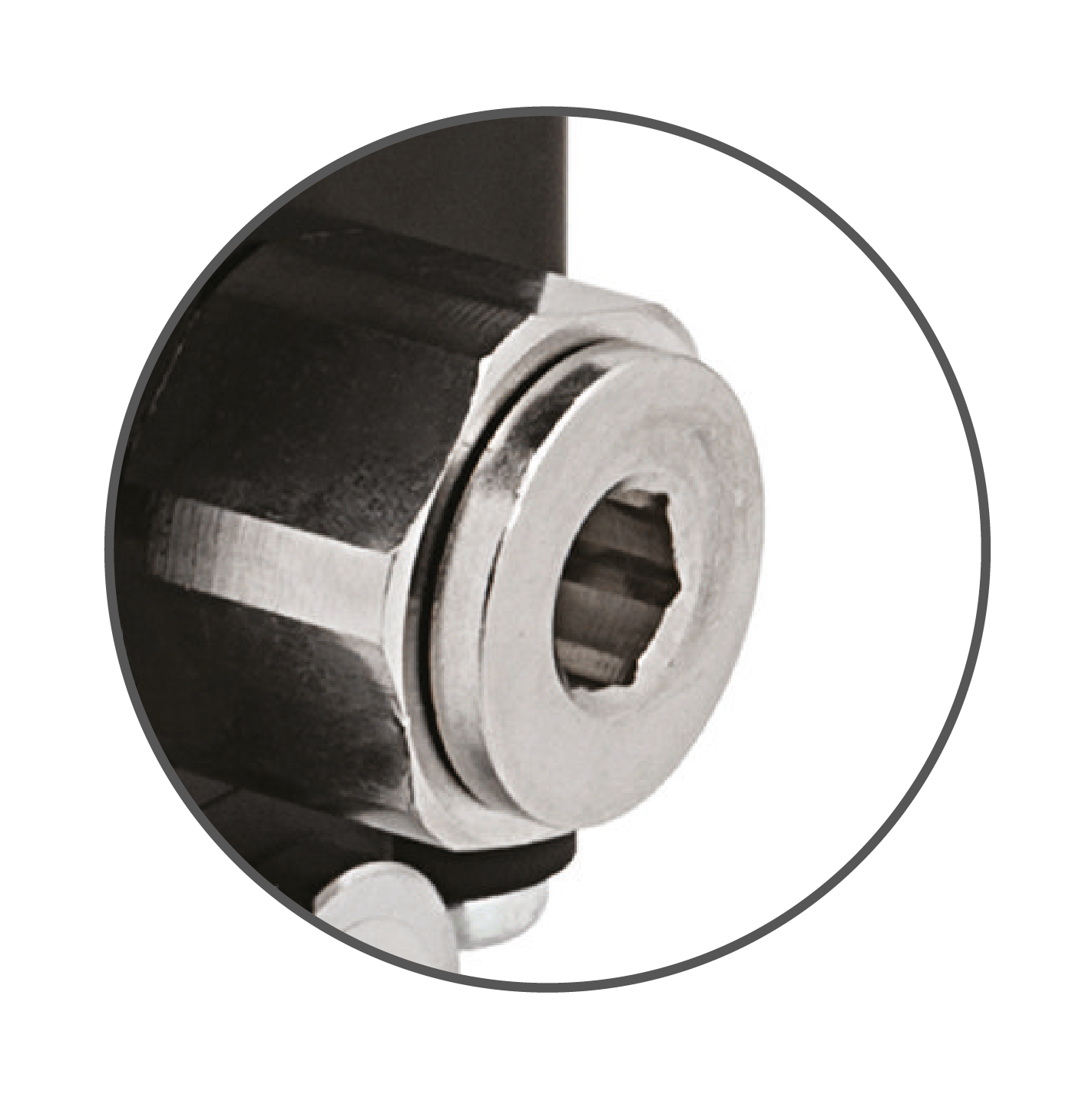

Inlet 1 x G1/2”F + 1 x G3/4”M – G1/2”F (2) 2 x R1/2”F NPT 1 x G1/2”F + 1 x G3/4”M – G1/2”F (2)
Outlet (with flow limiter) 1 x ø12
Weight (Kg) 0,6
Receiver volume (litri) 0,09
Certificates CE CE+UL CE
Code 15-272 15-271 15-275 15-273 15-274

(1) = Data refer to 1000 mbar(a), 20° C and 60% relative humidity. Operating pressure 7 bar and outlet temperature of the aftercooler 35° C.
(2) = For NPT version, minimum purchase lots are required. Get in touch with the Customer Service.

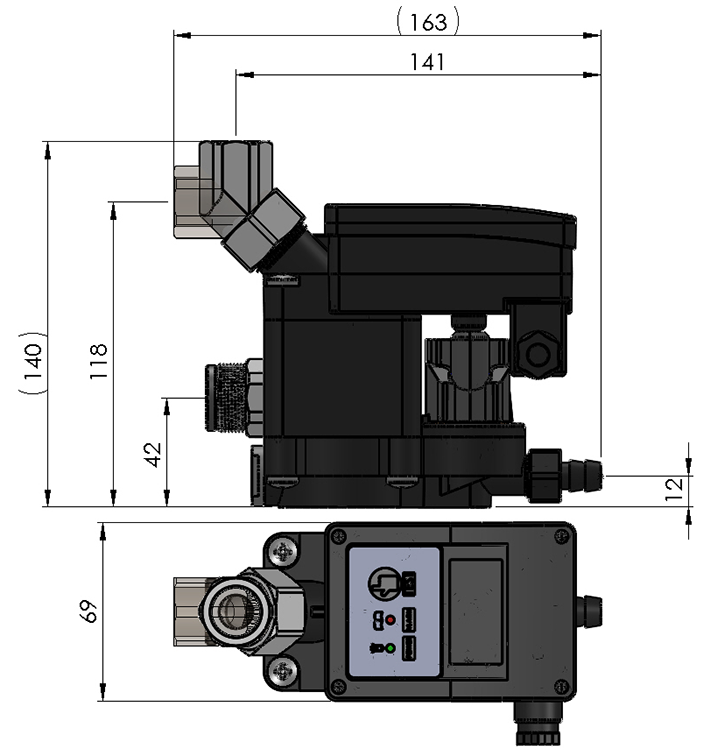

DIMENSIONAL VIEW

Click on image to enlarge

SERVICE KIT – ACCESSORIES
